(1 成都理工大学沉积地质研究院, 四川 成都610059; 2 成都理工大学油气藏地质及 开发工程国家重点实验室, 四川 成都610059; 3 中国地质科学院矿产资源研究所, 北京100037; 4 成都理工大学地球科学学院, 四川 成都610059)
第一作者简介李启来, 男, 1989年生, 博士研究生, 沉积学专业。 Email: 6736558 92@qq.com
** 通讯作者伊海生, 男, 1959年生, 教授, 博士生导师, 主要从事沉积地质学研究 。 Email: yhs@cdut.edu.cn
收稿日期2016-03_08
本文得到国家科技支撑计划专题项目(编号: 2011BAB04B10_2)资助
of Beisi Formation in Dongping area, Guangxi, and its genetic study
(1 Institute of Sedimentary Geology, Chengdu University of Technology, Chengdu 610059, Sichuan, China; 2 State Key Laboratory of Oil/Gas Reservoir Geology and Exploration, Chengdu University of Technology, Chengdu 610059, Sichuan, China; 3 Institute of Mineral Resources, Chinese Academy of Geological Sciences, Beijing 100037, China; 4 College of Earth Sciences, Chengdu University of Technology, Chengdu 610059, Sichuan, China)
2016-03_08

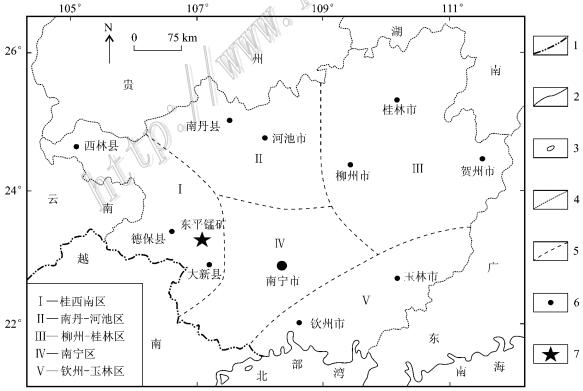

图 1广西含锰地层分区示意图(据茹廷锵等,1992修改) 1—国界线; 2—海岸线; 3—岛屿; 4—省界线; 5—含锰地层分区界线; 6—地名; 7 —研究区位置 Fig. 1Sketch map showing regionalization of manganese_bearing sequences in Gua ngxi (modified after Ru et al.,1992) 1—National boundaries; 2—Coastline; 3—Island; 4—Provintial boundary; 5—Dist rict boundaries of manganese_bearing Sequence; 6—Administrative place name; 7 —Location of the study area |

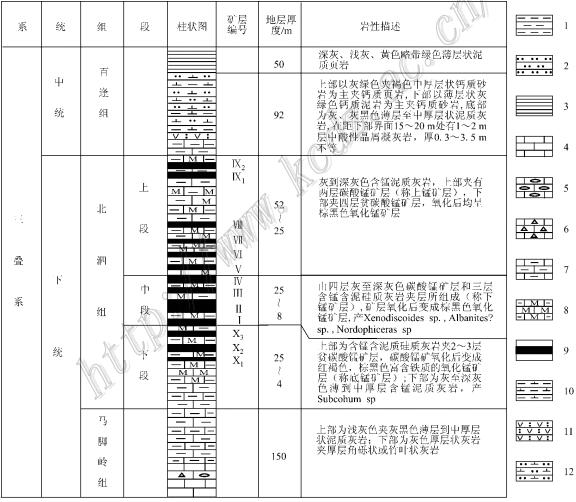

图 2东平锰矿区综合地层柱状图(据杜树三等,1994修改) 1—泥岩; 2—砂岩; 3—页岩; 4—灰岩; 5—竹叶状灰岩; 6—角砾状灰岩; 7—泥质 灰岩; 8—含锰泥质灰岩; 9—锰矿层; 10—钙质泥岩; 11—凝灰岩; 12—钙质砂岩 Fig. 2Comprehensive stratigraphic column of manganese_bearing rock assemblages in Dongping area(modified after Du et al.,1994) 1—Mudstone; 2—Sandstone; 3—Shale; 4—Limestone; 5—Edgewise conglomerate; 6— Brecciated limestone; 7—Argillaceous limestone; 8—Manganese_bearing argillac eous limestone; 9—Manganese mineralization beds; 10—Calcareous mudstone; 11—T uff; |
微量元素中,w(Sr)最高,平均为822.13×10-6,其次是w(Ba),平均为277.85×10-6,Zn、Rb、Zr、V平均质量分数介于50.00 ×10-6~100.00×10-6,Ni、Cr、Cu、Ga、Pb、Co、Li、Y质量分数介于10. 00×10-6~50.00×10-6,Sc、Th、Nb、Cs、W、U、Hf、Sb、Be、Mo质量分数 介于1.00×10-6~10.00×10-6,余下的Tl、Bi、Cd含量低,质量分数均小 于0.50×10-6。与世界大 洋热水铁锰结壳均值(Anikeeva et al.,2002)相比,Ba、Zn、Zr、V、Ni、Cu、Pb、Co 、 Li、Y、Nb、W、U、Hf、Sb、Mo、Tl、Bi、Cd等元素含量最大值均低于世界大洋热水铁锰结 壳均值,Sr、Sc、Th、Cs、Be等元素含量均值与之相当,而Rb、Ga等元素含量均值较高,Cr 含量较低(图3)。
表 1东平地区北泗组碳酸锰矿床元素含量数据 Table 1Element content of manganese carbonate deposits of the Beisi Formation in Dongping area |
图 3东平地区北泗组碳酸锰矿床和世界大洋热水铁锰结壳(Anikeeva et al.,2002)元 素含量分布图 Fig. 3Distribution of element content of manganese carbonate deposits of the B eisi Formation in Dongping area and hydrothermal crusts of the Worlds oceans (after Anikeeva et al.,2002) |
另外,样品Co/Ni比值均小于0.89,而 Co/Ni比值小于1是热水沉积的标志(杨瑞东等,2010)。 分析表明,东平地区北泗组碳酸锰矿床为热水沉积。
图 4东平地区北泗组碳酸锰矿床Fe_Mn_(Ni+Co+Cu) ×10三角图解(底图据Crerar et al.,1982修改) Fig. 4Triangular diagram of Fe_Mn_(Ni+Co+Cu)×10 for manganese carbonate depos its of the Beisi Formation in Dongping area(base map modified after Cre rar et al., 1982) |

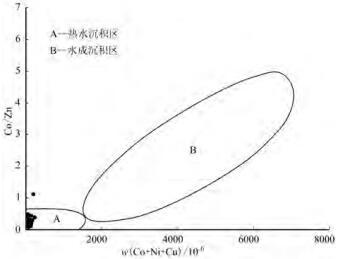

图 5东平地区北泗组碳酸锰矿床Co/Zn_(Co+Ni+Cu) 相关图(底图据Toth,1980修 改) Fig. 5Correlation diagram of Co/Zn_(Co+Ni+Cu) for manganese carbonate deposits of the Beisi Formation in Dong_ ping area(base map modified after Toth ,1980) |
目前,国内锰矿床中有关Ga含量的数据主要有:贵州从江高增大塘坡组锰矿床中块状锰矿、 氧化锰矿、纹层状锰矿和含锰泥岩,w(Ga)平均值分别为18.70×10-6、15.90 ×10-6、6.56 ×10-6、18.80×10-6 (杨瑞东等,2010)(图6:7、10~12);贵州水城茅口组锰矿床中w( Ga)介于3.77×10-6~80.30×10-6,平均值为13.87×10-6,其中 锰矿层和围岩w(Ga)平均值分别为14.92×10-6和10.93×10-6 (杨瑞东等,2009)(图6:8、9);贵州遵义锰矿 白泥塘层硅质岩中w(Ga)介于0.23×10-6~11.10×10-6之间,平 均值为3.31×10-6(刘志 臣等,2013)(图6:5);广西下雷地区五指山组锰矿床中w(Ga)介于1.71×1 0-6~56.40×10-6, 平均值为15.56×10-6, 其中锰矿层和围岩w(Ga)平均值分别为22.96×10-6、5.69×10-6(张超,2013) (图6:6、13);贵州松桃杨家湾锰矿层中w(Ga)平均值为40.27×10 -6 (何志威等,2013)(图6:14)。与这些资料相比(图6),北泗组碳酸锰矿床围岩中Ga含 量高于国内大部分锰矿层中Ga含量,而锰矿层中Ga含量相对为最高。

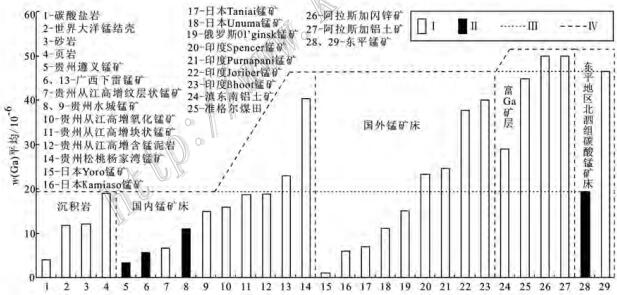

图 6沉积岩(Anikeeva et al.,2002;陈骏等,2004)、国内锰矿床(杨瑞东等,2009 ;2 010;刘志臣等,2013;张超,2013;何志威等,2013)、国外锰矿床(Sugisaki et al., 1991;Kazachenko et al.,2006;Mishra et al.,2006)、富Ga矿层(Fechner,1985;Z hao et al.,2009;王行军等,2015)及东平地区北泗组碳酸锰矿床中Ga含量分布 图 Ⅰ—沉积岩或矿层; Ⅱ—围岩; Ⅲ—东平地区北泗组碳酸锰矿Ga含量均值等值线; Ⅳ— 数据分类界线 Fig. 6Distribution of content of Ga in sedimentary rock (after Anikeeva et al. , 2002; Chen et al., 2004), manganese ore deposits in China (after Yang et al., 2 009; 2010; Liu et al., 2013; Zhang, 2013; He et al., 2013) and abroad (after Sug isaki et al., 1991; Kazachenko et al., 2006; Mishra et al., 2006), gallium_rich ore beds (after Fechner , 1985; Zhao et al., 2009; Wang et al., 2015) an d mangan ese carbonate deposits of the Beisi Formation in Dongping area Ⅰ—Sedimentary rock or ore bed; Ⅱ—Surrounding rock; Ⅲ—Contour lines of the average content of Ga in manganese carbonate deposits of the Beisi Formation i n Dongping area; Ⅳ—Classification boundaries of data |
迄今为止,尚无发现Ga的独立矿床(Zhao et al.,2009),Ga主要产于铝土矿、闪锌矿和 煤矿之中(Christie et al.,2002;Zhao et al.,2009;Sverdrup et al.,2014)。部 分铝土矿、闪锌矿和煤矿矿层中Ga含量与北泗组碳酸锰矿床矿层中Ga含量相当,甚至比之小 (图6)。例如,产有超大型Ga矿床的内蒙古准格尔煤田黑岱沟矿区6煤矿,其w(Ga)平 均值 为44.80×10-6(Zhao et al.,2009)(图6:25);美国阿拉斯加闪锌矿和铝土矿 中w(Ga) 平均值皆为50.00×10-6(Fechner ,1985)(图6:26、27);滇东南地区铝土矿 中w(Ga) 平均值为28.86×10-6(王行军等,2015)(图6:24)。铝土矿、闪锌矿和煤矿中G a的最低 工业品位w(Ga)分别为20.00×10-6、100.00×10-6和30.00×10-6 (邵厥年等,2010),但 目前,尚无锰矿中Ga的最低工业品位要求。参照煤中Ga的工业品位要求,则15件北泗组碳酸 锰矿床样品中,有8件样品的w(Ga)>30.00×10-6,占53.33%,其中锰矿层和围 岩样品中分别 有75.00%和28.57%的样品Ga含量达到工业品位要求。因此,以Ga含量来看,东平地区北泗 组碳酸锰矿床具有成为Ga矿床的可能,但其商业价值有待进一步研究。
此外,东平地区北泗组碳酸锰矿床上覆百逢组底部地层w(Ga)平均值为12.73×10- 6,下伏马 脚岭组顶部地层w(Ga)平均值为12.64×10-6(伊海生等,2015),明显低于北 泗组锰矿床中 的w(Ga)平均值33.76×10-6。因此,在区域上,高含量的Ga可以作为寻找类似 东平碳酸锰矿床的一个地球化学标志。
与上述铁锰沉积不同,东平地区北泗组碳酸锰矿床中Ga与Al的相关系数仅为0.28,与Mn的 相 关系数却高达0.99(图7a、b)。最近,在白令海中也有类似的发现。白令海热水铁锰结壳 中G a平均含量为37.59×10-6,Ga与Al的相关系数为-0.68,与Mn的相关系数高达0.98 (Baturin et al.,2010)。关于Ga在这类铁锰结壳中的赋存情况,有学者进行了初步研究。Koschins ky等(2003)首先研究了亚热带西太平洋和大西洋水成和热水铁锰结壳,发现水成和热液铁 锰结壳中分别有90.47%和95.85%的Ga赋存在锰氧化物之中,二者w(Ga)平均值分别为1 9.10× 10-6、12.87×10-6。Mikhailik等(2015)研究了日本海Belyaevsky海底山 热水铁锰结壳, 结果显示79.40%的Ga赋存在锰氧化物之中,w(Ga)平均值为19.10×10-6。由此 看来,东平地区北泗组碳酸锰矿床中Ga的赋存与含锰矿物密切相关。
图 7古代锰矿床(杨瑞东等,2009;本研究)和现代大洋铁锰沉积(Dubinin et al.,20 06;2008;Anikeeva et al.,2008; Baturin et al.,2010;2012) Al_Ga(a)、Mn_Ga (b)交会图 图中虚线为Ga的克拉克值19.00×10-6(Dubinin et al.,2008) Fig. 7Cross plots of Al_Ga(a) and Mn_Ga(b) for manganese ore deposits (after Yang et al.,2009;this study) and ferromanganese deposits form the ocean (after Dubi nin et al.,2006;2008;Anikeeva et al.,2008;Baturin et al.,2010;2012) The dotted line in the diagram shows the clark value of Ga, 19.00×10-6 ( after Dubinin et al.,2008) |
Zn/Co比值是判别沉积环境最为有效的指标之一(Sugisaki et al.,1991),东平地区北泗 组碳 酸锰矿床样品Zn/Co平均值为4.69,与边缘海(日本海)铁锰沉积物中Zn/Co值(Kinoshita et al.,1981)相当。Mikhailik等(2015)认为日本海Belyaevsky海底山铁锰结壳中Ga主要来 源于富Ga的长白山火山灰,而北泗组凝灰岩中w(Ga)平均值为16.50×10-6 (伊海生等,2015 ),与正常火成岩均值(刘英俊等,1984)相当,异常不明显,而与北泗组碳酸锰矿床中 w(Ga)平均值33.76×10-6相差较大。另外,因构造、岩浆热液、风化淋滤和地下 水活动等作用 富集形成的Ga常与Al呈较好的正相关性(翟秀静等,2010;陈阳等,2013;张勇等,2014) ,而北泗组碳酸锰矿床中Ga与Al相关性差,相关系数为0.28。这意味着东平地区北泗组碳 酸锰矿床中Ga来源于凝灰岩的可能性不大。
海底热液活动产物包括热液流体、热液硫化物、喷口生物、热液柱、热液蚀变岩石、含金属 沉积物和自然元素等(曾志刚,2011)。目前已有的诸多报道(Krupp et al.,1987;1990 ; Glasby et al.,1997;Benézéth et al.,1997;Metz et al.,2000;Baturin et al. ,2011)显示,海底热液流体富含Ga。同时,海底热液硫化物中也有高含量Ga的报道(Iiza sa et al.,1999;Lein et al.,2003;Noguchi et al.,2007)。例如,在冲绳海槽和菲 律宾海Suiyo海底山热液硫化物中,w(Ga)分别高达3700.00×10-6和1440. 00×10 -6(Noguchi et al.,2007)。另外,Bull(1991)和Colwell(1997)认为海洋生物亦能够富集Ga。据东 平地区锰矿钻孔资料分析,北泗组地层及矿层厚度呈带状延伸,明显受线性构造控制,反映 出北泗组碳酸锰矿床沿同生断裂带展布,沉积时期海底热液活动活跃(杜树三等,1994;李 升福等,2009;伊海生等,2015;谢华,2015)。同时,有机地球化学分析也表明北泗组碳 酸锰矿床中有机质主要来源于热液喷口微生物群落(伊海生等,2015)。据此推断,东平地 区北泗组碳酸锰矿床中Ga的来源与海底热液活动有关。
图 8现代大洋铁锰沉积(Anikeeva et al.,2008;Dubinin et al.,2008;Baturin et al.,2010;2012)及古代锰矿床(张超,2013; 本研究)Mn/Fe_Ga(a)、Co_Ga(b)对 数坐标交会图 红色—现代大洋热水铁锰沉积; 蓝色—现代大洋水成铁锰沉积; 黑色—古代锰矿床 Fig. 8Logarithmic coordinate cross plot of Mn/Fe_Ga (a) and Co_Ga (b) for ferr omanganese deposits form the ocean (after Anikeeva et al., 2008; Dubinin et al ., 2008; Baturin et al., 2010; 2012) and manganese ore deposits (after Zhang, 2013; this study) Red—Hydrothermal ferromanganese deposits form the ocean; Blue—Hydrogenic ferro manganese deposits form the ocean; Black—Manganese ore deposit |
(2) 东平地区北泗组碳酸锰矿床地球化学特征显示,相对于世界大洋热水铁锰结壳元素含 量均值,其明显富集Rb、Ga等元素,Al、K、Sr、Sc、Th、Cs、Be等元素含量均值与之相当 ;Fe_Mn_(Ni+Co+Cu)×10三角图解、Co/Zn_(Co+Ni+Cu)相关图以及Co/Ni值表明北泗组碳酸 锰矿床为热水沉积。
(3) 通常,Ga与铝硅酸盐关系密切,而东平地区下三叠统北泗组碳酸锰矿床中Ga与Al的相 关系数仅为0.28,与Mn的相关系数高达0.99。结合现代大洋铁锰沉积有关Ga的最新报道, 研究表明北泗组碳酸锰矿床中Ga的赋存与含锰矿物密切相关,来源与海底热液活动有关。
(4) 利用Mn/Fe_Ga、Co_Ga的关系图可判别古代铁锰沉积的成因类型。
Anikeeva L I and Kazakova V E. 2002. Geochemistry of cobalt_abundant Fe_ Mn crust s[A]. In: Cobalt_Abundant ores of the world ocean[M]. St. Petersburg: Inst. Okeanol. 59_91.
Anikeeva L I, Kazakova V E, Gavrilenko G M and Rashidov V A. 2008. Ferromanganes e crust formations of the West Pacific Transition Zone[J]. Vestnik KRAUNTs. Na uki o Zemle, 11(1): 10_309(in Russian).
Bao G D. 1991a. Study on the main factors controlling the geochemical characteri stics of iron manganese nodules——Ⅰ. The geochemical characteristics of ir on manganese nodules[J]. Science in China(Series B), 8: 860_866(in Chinese).
Bao G D. 1991b. Study on the main factors controlling the geochemical characteri stics of iron manganese nodules——Ⅱ. The different formation mechanism of Mn/F e tuberculosis[J]. Science in China(Series B), 9: 970_978(in Chinese).
Baturin G N, Dubinchuk V T and Rashidov V A. 2011. Distribution of microelements in ferromanganese crusts of the sea of Okhotsk[J]. Doklady Earth Sciences, 44 0(1): 1291_1297.
Baturin G N, Dubinchuk V T and Rashidov V A. 2012. Ferromanganese crusts from th e Sea of Okhotsk[J]. Oceanology, 52(1): 88_100.
Baturin G N, Dubinchuk V T, Savels ev D P, Derkachev N A, Tsukanov N V and Zolo tykh E O. 2010. Ferromanganese crusts on the bottom of the Bering Sea[J]. Dokl ady Earth Sciences, 435(1): 1478_1482.
Benézéth P, Diakonov I I, Pokrovski G S, Dandurand J L, Schott J and Khodakovs ky I L. 1997. Gallium speciation in aqueous solution. Experimental study and mod elling: Part 2. Solubility of α_GaOOH in acidic solutions from 150 to 250℃ and hydrolysis constants of gallium (Ⅲ) to 300℃[J]. Geochimica et Cosmochi mica Acta, 61(7): 1345_1357.
Bonatti E. 1975. Metallogenesis at oceanic spreading centers[J]. Annual Re view of Earth and Planetary Sciences, 3: 401_431.
Bull A T. 1991. Biotechnology and biodiversity[A]. In: Hawksworth D L. The Bio di versity of microorganisms and invertebrates: Its role in sustainable agriculture [M]. Wallingford, Oxon, UK: CAB International. 203_219.
Chen J and Wang H N. 2004. Geochemistry[M]. Beijing: Science Press. 1_418(in C hinese).
Chen Y, Cheng J, Ren S C, Li J M, Chen W and Chen L. 2013. Distribution of Ga in Dafoyan bauxite mining area, southern Chongqing[J]. Chinese Journal of Ra re Metals, 37(1): 140_148(in Chinese with English abstract).
Christie T and Brathwaite B. 2002. Mineral commodity report 19_beryllium, galliu m, lithium, magnesium, uranium and zirconium[R]. Lower Hutt: Institute of Geol og ical and Nuclear Sciences Ltd, The New Zealand Ministry of Economic Development.
Colwell R R. 1997. Microbial diversity: The importance of exploration and conser vation[J]. Journal of Industrial Microbiology & Biotechnology, 18(5): 302_307.
Crerar D A, Cormick R K and Barnes H L. 1980. Geochemistry of manganese: An over view[J]. Geology and Geochemistry of Manganese, 1: 293_334.
Crerar D A, Namson J, Chyi M S, Williams L and Feigenson M D. 1982. Manganiferou s cherts of the Franciscan assemblage; I, General geology, ancient and moder n an alogues, and implications for hydrothermal convection at oceanic spreading cente rs[J]. Econ. Geol., 77(3): 519_540.
Du S S, Luo Y H and Wang K Z. 1994. Minerogenetic regulation and prediction of h igh quality manganese ore deposits in the Devonian_Triassic system in southwest Guangxi area[R]. Wuhan: Research Institute of South Central Geological Pro spect ing Bureau, Ministry of Metallurgical Industry. Inner report. 1_131(in Chinese).
Dubinin A V and Uspenskaya T Y. 2006. Geochemistry and specific features of mang anese ore formation in sediments of oceanic bioproductive zones[J]. Lithology and Mineral Resources, 41(1): 1_14.
Dubinin A V, Uspenskaya T Y, Gavrilenko G M and Gashidov V A. 2008. Geochemistry and genesis of Fe_Mn mineralization in island arcs in the West Pacific Ocea n[J]. Geochemistry International, 46(12): 1206_1227.
Elderfield H and Greaves M J. 1981. Negative cerium anomalies in the rare earth element patterns of oceanic ferromanganese nodules[J]. Earth and Planetary Sci ence Letters, 55(1): 163_170.
Fechner S A. 1985. Gallium and germanium potential in Alaska[R]. Inner report.
Glasby G P, Stüben D, Jeschke G, Stoffers P and Garbe_Schnberg C D. 1997. A m o del for the formation of hydrothermal manganese crusts from the Pitcairn Island hotspot[J]. Geochimica et Cosmochimica Acta, 61(21): 4583_4597.
He Z W, Yang R D, Gao J B, Cheng W and Huang J G. 2013. Geological geochemic al c haracteristics of manganese_bearing rock series of Yangjiawan manganese deposit, Songtao County, Guizhou Province[J]. Geoscience, 27(3): 593_602(in Chines e with English abstract).
Hein J R, Koschinsky A, Bau M, Manheim F T, Kang J K and Roberts L. 2000. Cobalt _rich ferromanganese crusts in the Pacific[M]. In: Cronan D S. Handbook of Mar ine Mineral Deposites: Boca Raton. Florida: CRC Press. 239_279.
Iizasa K, Fiske R S, Ishizuka O, Yuasa M, Hashimoto J, Ishibashi J, Naka J, Hori i Y, Fujiwara Y, Imai A and Koyama S. 1999. A Kuroko_type polymetallic sulfide d eposit in a submarine silicic caldera[J]. Science, 283(5404): 975_977.
Kazachenko V T, Miroshnichenko N V, Perevoznikova E V, Chubarov V M, Kiselev V I and Solyanik V A. 2006. Gallium, gold, and platinum group metals in manganese r ocks of Southern Sikhote Alin[J]. Doklady Earth Sciences, 407(2): 429_433.
Kinoshita T. 1981. Geochemical characteristics of marine argillaceous sediments from the Japan Sea with special reference to minor elements: Jour[J]. Geol. So c. Japan, 87: 369_381.
Koschinsky A and Hein J R. 2003. Uptake of elements from seawater by ferromangan ese crusts: Solid_phase associations and seawater speciation[J]. Marine Geolog y, 198(3): 331_351.
Krupp R E and Seward T M. 1987. The Rotokawa geothermal system, New Zealand; An active epithermal gold_depositing environment[J]. Econ. Geol., 82(5): 1109_112 9.
Krupp R E and Seward T M. 1990. Transport and deposition of metals in the Rotoka wa geothermal system, New Zealand[J]. Mineralium Deposita, 25(1): 73_81.
Lein A Y, Ulyanova N V, Sagalevich A M, Bogdanov Y A, Gurvich E G, Cherkashev G A, Stepanova T V, Torokhov M P and Ulyanov A A. 2003. Mineralogy and geochemistr y of sulfide ores from the Logachev_2 and Rainbow fields: similar and distinctiv e features[J]. Geochemistry International, 41(3): 271_294.
Li S F, Wang Z H, Li L T, Xia L J, Jian Y G, Hou J S and Chen S X. 2009. Analysi s of metallogenic mechanism of high_grade manganese ore in southwest Guangxi[J ]. Resources Environment & Engineering, 23(4): 363_370(in Chinese with Englis h abstract).
Li S F. 1993. Study on geological feature and metallogenic conditions of Dongpin g manganese_capped deposits[J]. South China Metallurgical Geology, 2: 17_23(in Chinese).
Li Y. 2007. Metallogenic regularity and prospecting direction of hotwater sedimn tary deposits, Guangxi, China(dissertation of master degree)[D]. Supervisor: D ai T G and Xu W X. Changsha: Central South University. 1_216(in Chinese with Engli sh abstract).
Liang Q, Jing H and Gregoire D C. 2000. Determination of trace elements in grani tes by inductively coupled plasma mass spectrometry[J]. Talanta, 51(3): 50 7_513.
Liu T F. 1996. Study on geological feature and metallogenic conditions of Dongpi ng supergene enriched Mn ore deposit[J]. Contributions to Geology and Mine ral Resources Research, 11(4): 42_55(in Chinese with English abstract).
Liu Y J, Cao L M, Li Z L, Wang H N, Chu T Q and Zhang J R. 1984. Element geochem istry[M]. Beijing: Science Press. 378_387(in Chinese).
Liu Z C, Zhang Y G, Chen D, Liu J H, Cui Z Q, Hu L Y and Zhong Y L. 2013. Geoche mical characteristics and geological significance of Bainitangceng siliceous r ocks in Zunyi manganese ore fields, Guizhou Province, China[J]. Acta Mineralog ica Sinica, 33(4): 265_270(in Chinese with English abstract).
Metz S and Trefry J H. 2000. Chemical and mineralogical influences on concentrat ions of trace metals in hydrothermal fluids[J]. Geochimica et Cosmochimica Acta, 64(13): 2267_2279.
Mikhailik P E and Khanchuk A I. 2011. Ferromanganese crusts from submarine volca noes of backarc basins as a new genetic type of gallium deposits[J]. Dokla dy Earth Sciences, 439(2): 1060_1062.
Mikhailik P E, Mikhailik E V, Blokhin M G and Zarubina N V. 2015. Sources of gal lium in ferromanganese crusts from the Sea of Japan[J]. Russian Geology an d Geophysics, 56(8): 1148_1153.
Mishra P, Mvohapatra B K and Singh P P. 2006. Mode of occurrence and characteris tics of Mn_ore bodies in iron ore group of rocks, north Orissa, India and its si gnificance in resource evaluation[J]. Resource Geology, 56(1): 55_64.
Moskalyk R R. 2003. Gallium: The backbone of the electronics industry[J]. Minerals Engineering, 16(10): 921_929.
Noguchi T, Oomori T, Tanahara A, Taira N, Takada J and Taira H. 2007. Chemical c omposition of hydrothermal ores from Mid_Okinawa Trough and Suiyo Seamount deter mined by neutron activation analysis[J].Geochemical Journal, 41(2): 141_148.
Ou L H. 2015. Research on depositional feature and mineralization mechanism of t he Upper Devonian manganese deposit in Southwestern Guangxi area (dissertati on o f doctor degree)[D]. Supervisor: Yi H S. Chengdu: Chengdu University of Techno logy. 1_118(in Chinese with English abstract).
Qin Y K, Zhang H C and Yao J Q. 2010. Geochemical characteristics and geological implication of the Xialei manganese depost, Daxin County, Guangxi[J]. Geologi cal Review, 56(5): 664_672(in Chinese with English abstract).
Rezic I and Steffan I. 2007. ICP_OES determination of metals present in textile materials[J]. Microchemical Journal, 85(1): 46_51.
Ru T Q, Wei L D and Shu G. 1992. Geological characteristics of manganese ores in Guangxi[M]. Beijing: Geological Publishing House. 1_320(in Chinese).
Shao J N and Tao W P. 2010. Mineral resources industry handbook[M]. Beijin g: Geological Publishing House. 280_282(in Chinese).
Sugisaki R, Sugitani K and Adachi M. 1991. Manganese carbonate bands as an indic ator of hemipelagic sedimentary environments[J]. The Journal of Geology, 99(1) : 23_40.
Sverdrup H U and Ragnarsdóttir K V. 2014. Section 2. Classification of natural resources[J]. Geochemical Perspectives, 3(2): 172_192.
The State Administration of Quality Supervision, Inspection and Quarantine of th e Peoples Republic of China. 2010a. GB/T 14506.28_2010 Silicate rock chemical a nalysis method The 28th part: determination of 16 major and minor elements conte nt[S]. Beijing: China Standards Press(in Chinese).
The State Administration of Quality Supervision, Inspection and Quarantine of th e Peoples Republic of China. 2010b. GB/T 14506.30_2010 Silicate rock chemical a nalysis method The 30th part: 44 elements flow measurement[S]. Beijing: China Standards Press(in Chinese).
Toth J R. 1980. Deposition of submarine crusts rich in manganese and iron[J]. Geological Society of America Bulletin, 91(1): 44_54.
Tu G C, Gao Z M, Hu R Z, Zhang Q, Li C Y, Zhao Z H and Zhang B G. 2004. The geoc hemistry and ore_forming mechanism of the dispersed elements[M]. Beijing: Geol ogical Publishing House. 368_380(in Chinese).
Usui A, Bau M and Toshitsugu Y. 1997. Manganese microchimneys buried in the Cent ral Pacific pelagic sediments: Evidence of intraplate water circulation[J]? Ma rine Geology, 141(1): 269_285.
Wang X J, Wang G H, Zhou J, Bi L S, Cui Y L, Zhang D H, Li W Q and Fan L J. 2015 . Research on the by_products of bauxite deposits in southeast Yunnan Province[ J ]. Contributions to Geology and Mineral Resources Research, 30(2): 167_173 (in Chinese with English abstract).
Xie H. 2015. Sedimentary characteristics of manganese_bearing rock series in the Lower Triassic, southwestern Guangxi(dissertation of master degree)[D]. Super vi sor: Yi H S. Chengdu: Chengdu University of Technology. 1_62(in Chinese with Eng lish abstract).
Yang R D, Cheng F L and Wei H R. 2009. Geochemical characteristics and origin of manganese deposit in the middle Permian Maokou Formation in Shuicheng, Guizhou, China[J]. Geotectonica et Metallogenia, 33(4): 613_619(in Chinese with En glish abstract).
Yang R D, Gao J B, Cheng F L, Wei H R, Xu L Q, Wen X F and Wei X. 2010. Sediment ary geochemistry of manganese deposit of the Neoproterozoic Datangpo Formation i n Guizhou, China[J]. Acta Geologica Sinica, 84(12): 1781_1790(in Chinese with English abstract).
Yang W, Zhou Y Z, He J G, Niu J, Yu P P and Chen S. 2015. The genesis analysis o f hydrothermal sedimentary of Xialei manganese deposit in southern part of the Q inHang metallogenic belt[J]. Journal of Jilin University(Earth Science Edition ), 45(A1): 820(in Chinese).
Yao Y C, Chen J C, Huh C H and Lee Y T. 2014. Geochemistry and origin of layers in single manganese nodule from the Philippine Sea and manganese nodules from of fshore Minami_Torishima, Western Pacific[J]. Acta Geologica Sinica (Englis h Edition), 88(6): 1835_1845.
Yi H S, Li Q L, Ou L H, Yin Q, Zhang C, Xie H, Yi F, Zhao X L and Gong Z. 2015. The research report of geological features of manganese ore deposits in Tianlin_ Daxin area, Guaangxi[R]. Chendu: Chengdu University of Technology. Inner repor t. 1_172(in Chinese).
Zeng M J. 1991. The problems and geological characteristics of Dongping type man ganese_capped deposits[J]. Metallurgical Geological Dynamic, 9: 3_7(in Chinese ).
Zeng Y Y. 1991. Study on the sedimentology of Late Devonian manganese ore deposi t in Xialei, Gaungxi[J]. Acta Sedimentologica Sinica, 9(1): 73_80(in Chinese w ith English abstract).
Zeng Z G. 2011. Seafloor hydrothermal geology[M]. Beijing: Science Press. 6_8( in Chinese).
Zhai X J and Lv Z J. 2010. Gallium metallurgy[M]. Beijing: Metallurgical Indus try Press. 39_49(in Chinese).
Zhang C. 2013. Sedimentation feature of manganese_bearing rock series from the U pper Devonian, Southwest of Guangxi, China(dissertation of master degree)[D]. Su pervisor: Yi H S. Chengdu: Chengdu University of Technology. 1_79(in Chinese wit h English abstract).
Zhang Y, Qin S J, Yang J J and Zhang J Y. 2014. Progress in geochemistry of gall ium in coal[J]. Geological Science and Technology Information, 33(5): 166_169( in Chinese with English abstract).
Zhao C L, Qin S J, Yang Y C, Li Y H and Lin M Y. 2009. Concentration of gallium in the Permo_Carboniferous coals of China[J]. Energy, Exploration & Exploitati on, 27(5): 333_344.
附中文参考文献
鲍根德. 1991a. 控制铁锰结核地球化学特征的主导因素研究——Ⅰ. 铁锰结核的 地球化学特征[J]. 中国科学: B辑, 8: 860_866.
鲍根德. 1991b. 控制铁锰结核地球化学特征的主导因素研究——Ⅱ. 不同Mn/Fe结核的形成 机制[J]. 中国科学: B辑, 9: 970_978.
陈骏, 王鹤年. 2004. 地球化学[M]. 北京: 科学出版社. 1_418.
陈阳, 程军, 任世聪, 李军敏, 陈威,陈莉. 2013. 渝南大佛岩铝土矿伴生镓的分布规律研 究[J]. 稀有金属, 37(1): 140_148.
杜树三,罗彦和,王克智. 1994. 桂西南地区泥盆系、三叠系优质锰矿成矿规律及成矿预测 [R]. 武汉: 冶金工业部中南地质勘查局研究所. 内部资料. 1_131.
何志威, 杨瑞东, 高军波, 程伟, 黄建国. 2013. 贵州省松桃杨家湾锰矿含锰岩系地质地球 化学特征[J]. 现代地质, 27(3): 593_602.
李升福. 1993. 广西东平地区锰帽型锰矿地质特征及成矿条件初步研究[J]. 中南冶金地 质, 2: 17_23.
李升福, 王泽华, 李朗田, 夏柳静, 简耀光, 侯建生, 陈石羡. 2009. 桂西南优质锰矿成矿 机理分析[J]. 资源环境与工程, 23(4): 363_370.
李毅. 2007. 广西热水沉积矿床成矿规律及找矿方向研究(硕士论文)[D]. 导师: 戴塔根, 徐文●. 长沙: 中南大学. 1_216.
刘腾飞. 1996. 广西东平表生富集型锰矿床地质特征及成矿条件初步研究[J]. 地质找矿 论丛, 11(4): 42_55.
刘英俊, 曹励明, 李兆麟, 王鹤年, 储同庆, 张景荣. 1984. 元素地球化学[M]. 北京: 科学出版社. 378_387.
刘志臣, 张远国, 陈登, 刘金海, 崔忠强, 胡乐宇, 钟月丽. 2013. 贵州遵义锰矿区白泥 塘层 硅质岩地球化学特征及其地质意义[J]. 矿物学报, 33(4): 265_270.
欧莉华. 2013. 桂西南地区上泥盆统锰矿沉积特征与成矿机理研究(博士论文)[D]. 导师: 伊海生. 成都: 成都理工大学. 1_118.
秦元奎, 张华成, 姚敬劬. 2010. 广西大新县下雷锰矿床的地球化学特征及其意义[J]. 地质论评, 56(5): 664_672.
茹廷锵, 韦灵敦, 树皋. 1992. 广西锰矿地质[M]. 北京: 地质出版社. 1_320.
邵厥年, 陶维屏. 2010. 矿产资源工业要求手册[M]. 北京: 地质出版社. 280_282.
涂光炽, 高振敏, 胡瑞忠, 张乾, 李朝阳, 赵振华, 张宝贵. 2004. 分散元素地球化学及成 矿机制[M]. 北京: 地质出版社. 368_380.
王行军, 王根厚, 周洁, 毕丽莎, 崔银亮, 张道红, 李伟清, 范良军. 2015. 滇东南铝土矿 床共生矿产及伴生矿产研究[J]. 地质找矿论丛, 30(2): 167_173.
谢华. 2015. 桂西南地区下三叠统含锰岩系沉积特征研究(硕士论文)[D]. 导师: 伊海生. 成都: 成都理工大学. 1_62.
杨瑞东, 程玛莉, 魏怀瑞. 2009. 贵州水城二叠系茅口组含锰岩系地质地球化学特征与锰矿 成因分析[J]. 大地构造与成矿学, 33(4): 613_619.
杨瑞东, 高军波, 程玛莉, 魏怀瑞, 许利群, 文雪峰, 魏晓. 2010. 贵州从江高增新元古代 大塘坡组锰矿沉积地球化学特征[J]. 地质学报, 84(12): 1781_1790.
杨威, 周永章, 何俊国, 牛佳, 虞鹏鹏, 陈铄. 2015. 钦杭成矿带南段广西下雷锰矿的热水 沉积成因分析[J].吉林大学学报(地球科学版), 45(A1): 820.
伊海生, 李启来, 欧莉华, 尹青, 张超, 谢华, 伊帆, 赵香玲, 龚政. 2015. 广西田林_大 新地区锰矿沉积地质特征研究成果报告[R]. 成都: 成都理工大学. 内部资料. 1_172 .
曾孟君. 1991. 广西东平式锰帽型氧化锰矿床地质特点及利用问题[J]. 冶金地质动 态, 9: 3_7.
曾友寅. 1991. 广西下雷晚泥盆世锰矿床沉积学研究[J]. 沉积学报, 9(1): 73_80.
曾志刚. 2011. 海底热液地质学[M]. 北京: 科学出版社. 6_8.
翟秀静, 吕子剑. 2010. 镓冶金[M]. 北京: 冶金工业出版社. 39_49.
张超. 2013. 桂西南地区上泥盆统含锰岩系沉积特征研究(硕士论文)[D]. 导师: 伊海生. 成都: 成都理工大学. 1_79.
张勇, 秦身钧, 杨晶晶, 张健雅. 2014. 煤中镓的地球化学研究进展[J]. 地质科技 情报, 33(5): 166_169.
中华人民共和国国家质量监督检验检疫总局. 2010a. GB/T 14506.28_2010 硅酸盐岩石化学 分析方法 第28部分: 16个主次成分量测定[S]. 北京: 中国标准出版社.
中华人民共和国国家质量监督检验检疫总局. 2010b. GB/T 14506.30_2010 硅酸盐岩石化学 分析方法 第30部分: 44个元素量测定[S]. 北京: 中国标准出版社.
