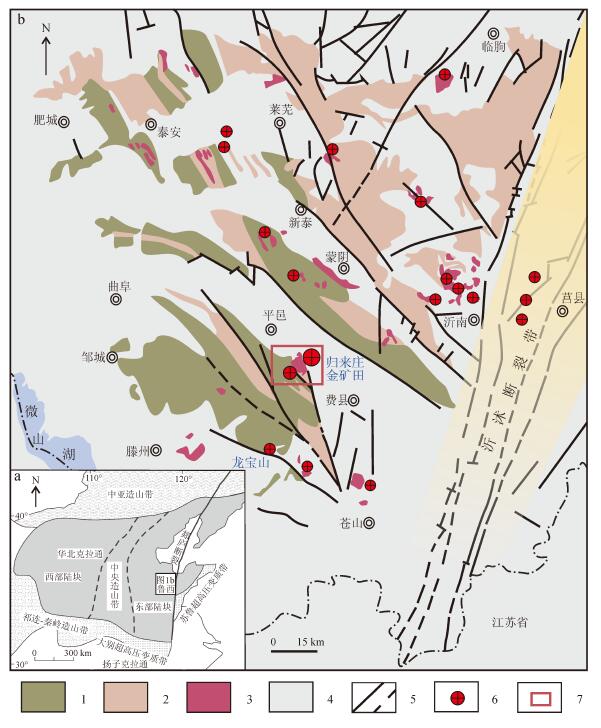

图 1鲁西地区区域位置(a)及地质矿产简图(b)
1—太古宙侵入岩类; 2—元古宙侵入岩类; 3—中生代侵入岩类; 4—地层; 5—已知和 推断的主要断层; 6—主要的金矿床和金矿点;
7—归来庄金矿田
Fig. 1Sketch regional location (a) and geological map (b) of western Shandong Province
1—Achaean intrusive rocks; 2—Proterozoic intrusive rocks; 3—Mesozoic intrusiv e rocks; 4—Strata; 5—Major observed or inferred faults;
6—Major gold deposi t or ore spot; 7—Guilaizhuang gold orefield
|

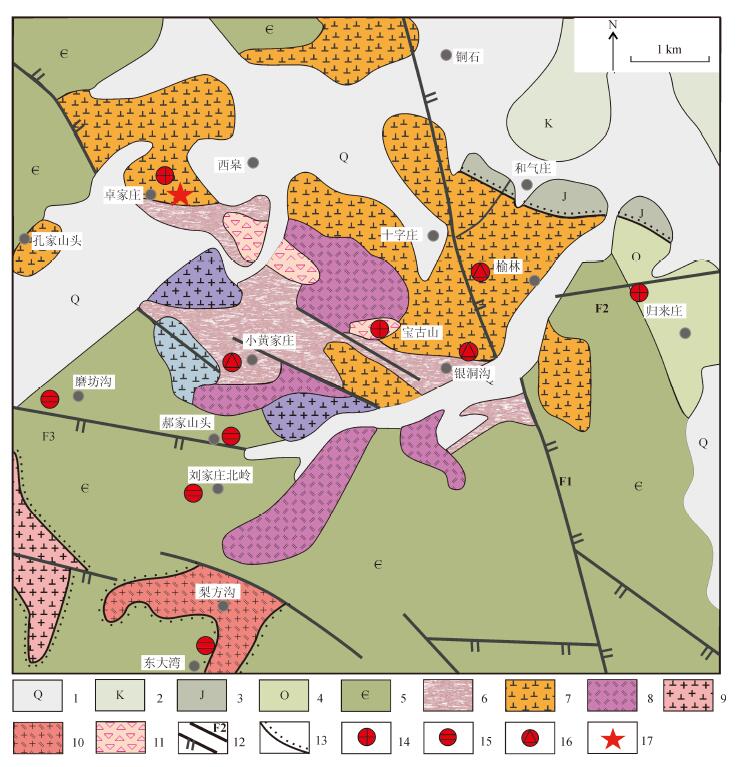

图 2山东归来庄含碲金矿田地质矿产略图(据于学峰等,2009)
1—第四系; 2—白垩系; 3—侏罗系; 4—奥陶系; 5—寒武系; 6—泰山岩群山草峪组 ; 7—燕山早期 二长闪长玢岩; 8—燕山早期二长斑岩; 9—古元古代花岗闪长岩; 10—古元古代二长花 岗岩; 11—燕山早期隐爆角砾岩; 12—断层; 13—不整合接触界线; 14—隐爆角砾岩型(归来 庄式)金矿床; 15—镁质碳酸盐岩微细浸染型(磨坊沟式)金矿床; 16—其他热液型金矿 床(点) ; 17—本次研究的矿床F1—燕甘断裂; F2—归来庄断层; F3—营子洼断层
Fig. 2 Sketch geological map of the Guilaizhuang gold orefield, showing location s of major Au deposits and ore spots (after Yu et al., 2009)
1—Quaternary; 2—Cretaceous; 3—Jurassic; 4—Ordovician; 5—Cambrian; 6—Shanca oyu Fo rmation of Taishan Group; 7—Early Yanshanian monzonitic diorite porphyry; 8—Ea rl y Yanshanian monzonite porphyry; 9—Paleoproterozoic granodiorite; 10—Paleoprot er ozoic monzogranite; 11—Early Yanshanian cryptoexplosive breccia; 12—Fault; 13 —Un conformable boundary; 14—Cryptoexplosive breccia_type gold deposit (Guilaizhua ng type); 15—Micro_disseminated gold deposits hosted by magnesium carbonate (Mo fanggou type); 16—Other hydrothermal_type gold deposit; 17—Deposit of this study F1—Yangan fault; F2—Guilaizhuang fault; F3—Yingziwa fault
|

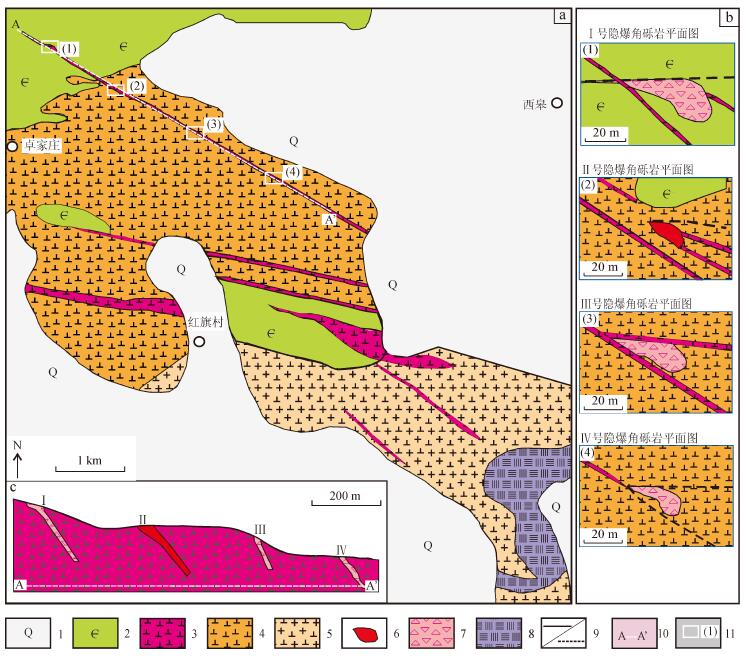

图 3山东卓家庄金矿床地质简图(a)隐爆角砾岩筒平面图(b)和剖面图(c)(据沈远 超等,2000;于学峰等,2009)
1—第四系; 2—寒武系; 3—燕山早期正长斑岩; 4—燕山早期二长闪长玢岩; 5—古元 古代花岗闪长岩; 6—隐爆角砾岩型矿体; 7—矿化隐
爆角砾岩; 8—无矿化隐爆角砾 岩; 9—已知和推断的断层; 10—A_A´剖面; 11—矿化隐爆角砾岩体位置和编号
Fig. 3Geological sketch map(a)of the Zhuojiazhuang gold deposit and plan vie w (b) and section (c) of cryptoexplosive breccias
(after Shen et al., 2000 ; Yu et al., 2009)
1—Quaternary; 2—Cambrian; 3—Early Yanshanian syenite porphyry; 4—Early Yans hanian monzonitic dioritic porphyry; 5—Paleoproterozoic granodiorite; 6 —Crypto _explosive breccia_type orebody; 7—Mineralized crypto_explosive breccia; 8—Non _mineralized crypto_explosive breccia; 9—Major observed or inferred fau lts; 10 —Position of A_A´ section; 11—Location of crypto_explosive breccia and its ser ial number
|
图 4卓家庄金矿床ZJ_2_1(a)和ZJ_b2_3(b)样品代表性显微照片(单偏光反光显微镜)
Alt—碲铅矿; Syl—针碲金银矿; Py—黄铁矿; Qtz—石英; Fl—萤石; Ser—绢云母
Fig. 4Representative photomicrographs of samples ZJ_2_1 (a) and ZH_b2_3(b) fro m the Zhuojiazhuang gold deposit
(under reflected light)
Alt—Altaite; Syl—Sylvanite; Py—Pyrite; Qtz—Quartz; Fl—Fluorite; Ser—Ser icite
|

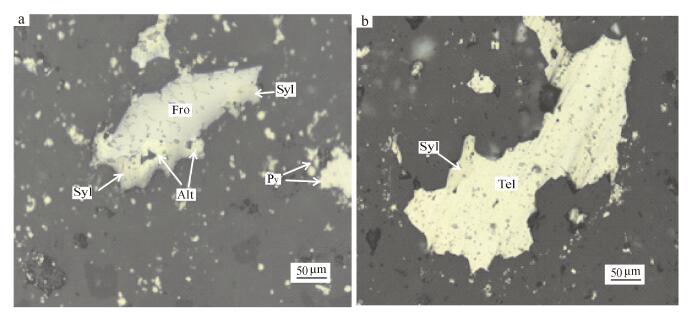

图 5卓家庄金矿床ZH_b1(a)和ZJ_3(b)样品代表性显微照片(单偏光反光显微镜)
Tel—自然碲; Alt—碲铅矿; Syl—针碲金银矿; Fro—碲铁矿; Py—黄铁矿
Fig. 5Representative photomicrographs of samples ZH_b1(a) and ZJ_3(b) from the Zhuojiazhuang gold deposit
(under reflected light)
Tel—Tellurium; Alt—Altaite; Syl—Sylvanite; Fro—Frohbergite; Py—Pyrit
|

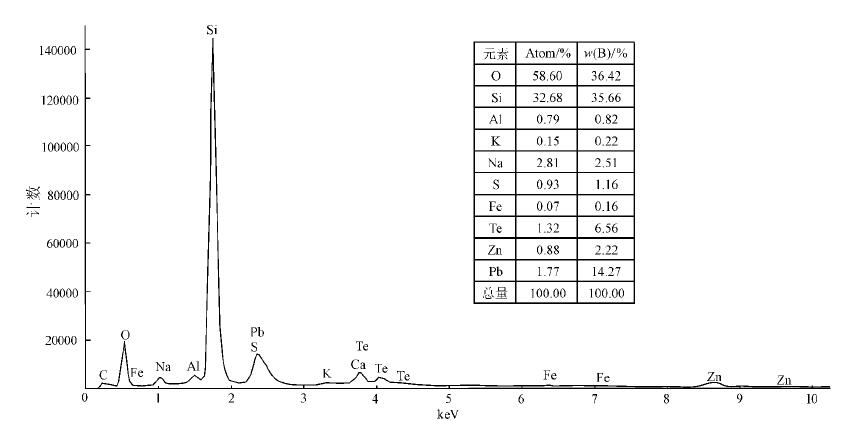

图 6卓家庄金矿床光片ZJ_3代表性区域X射线能谱分析结果
Fig. 6Results of X_ray energy dispersive spectrometry (EDS) for representative area of polished section ZJ_3 from
the Zhuojiazhuang gold deposit
|

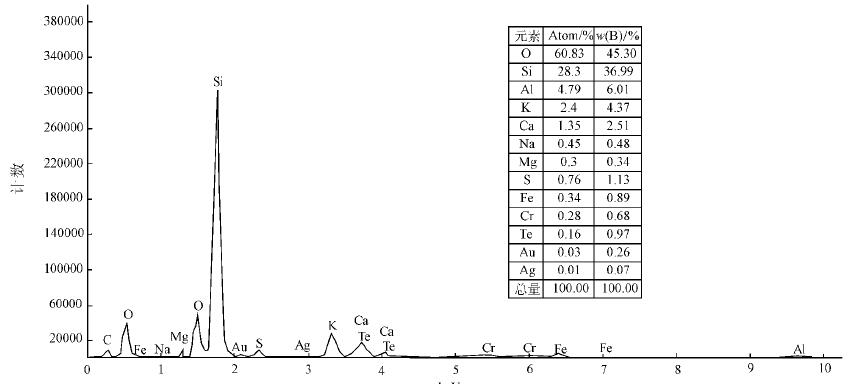

图 7卓家庄金矿床光片ZH_b1代表性区域X射线能谱分析结果
Fig. 7Results of X_ray energy dispersive spectrometry (EDS) for representative area of polished section ZH_b1 from the Zhuojiazhuang gold deposi
|

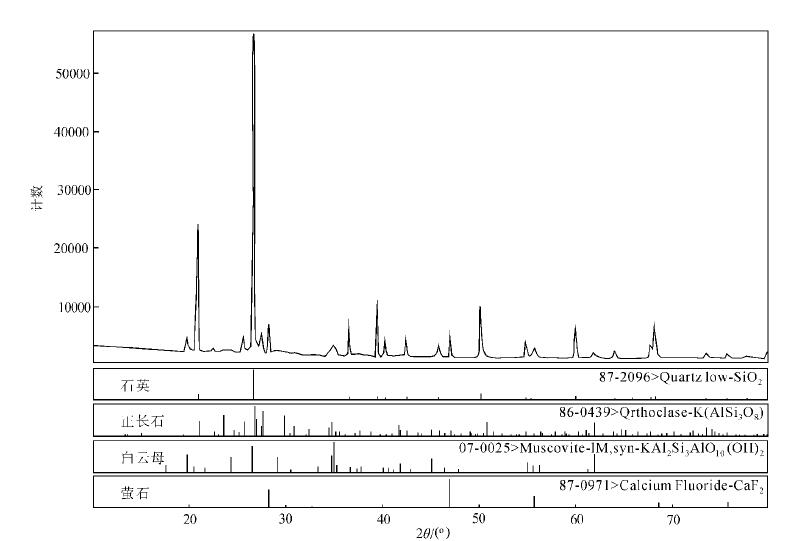

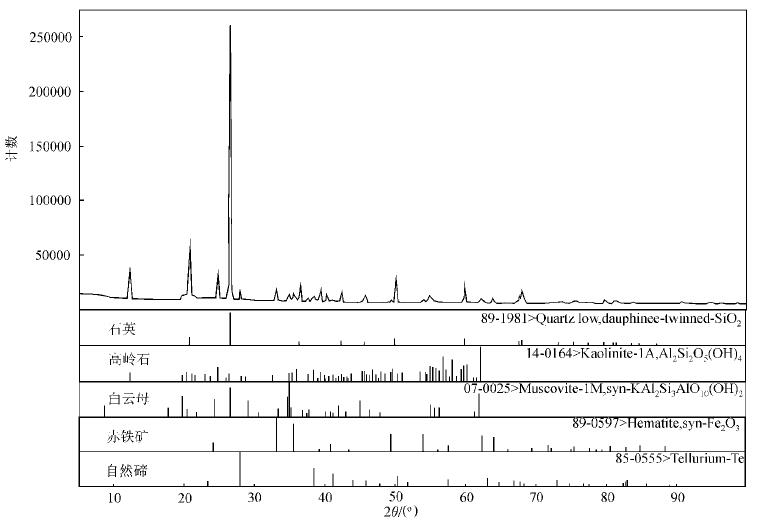

图 8卓家庄金矿床光片ZJ_3的X射线衍射物相分析图
Fig. 8X_ray diffraction phase identification of polished section ZJ_3 from the Zhuojiazhuang gold deposit
|
图 9卓家庄金矿床光片ZH_b1的X射线衍射物相分析图
Fig. 9X_ray diffraction phase identification of polished section ZH_b1 from th e Zhuojiazhuang gold deposit
|

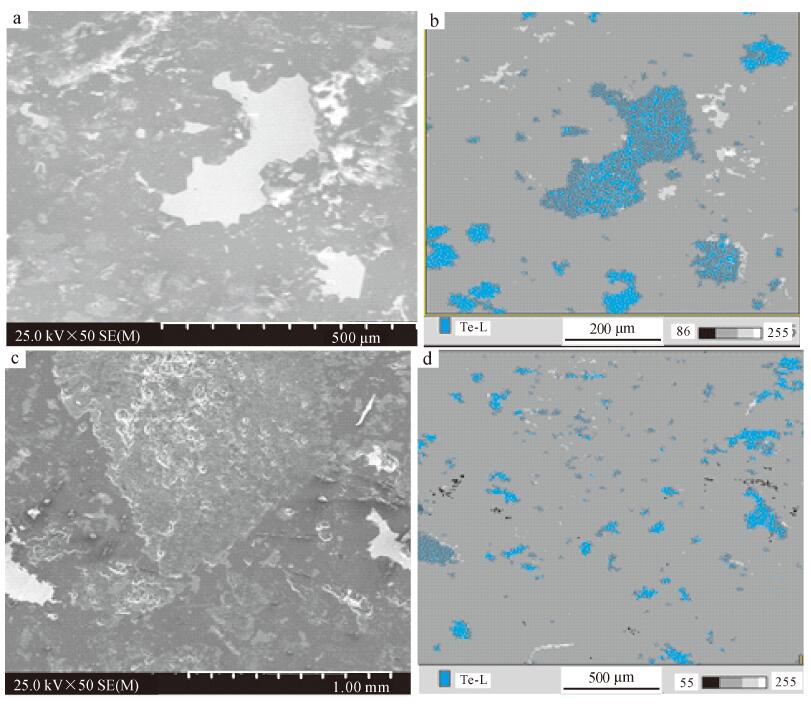

图 10卓家庄金矿床ZJ_3中2个典型区域含碲矿物形貌(a、b)和碲元素面他形分布扫描图(c 、d)
Fig. 10SEM images (a,b)and amorphous distribution of tellurium_bearing mine rals (c,d) in two typical areas of polished section ZJ_3 from the Zhuojiazhua ng gold deposit
|

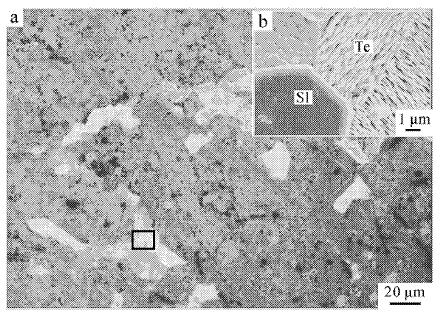

图 11卓家庄金矿床ZJ_3 特征区域含碲矿物高分辨扫描电镜形貌图(a)和局部放 大图(b)Sl—含铜碲金银矿; Te—单质碲矿
Fig. 11High resolution SEM images (a) and partial magnified image (b) of tellu rium_bearing minerals in typical areas ZJ_3 from the Zhuojiazhuang gold depositSl—Copper_bearing petzite; Te—Tellurium
|

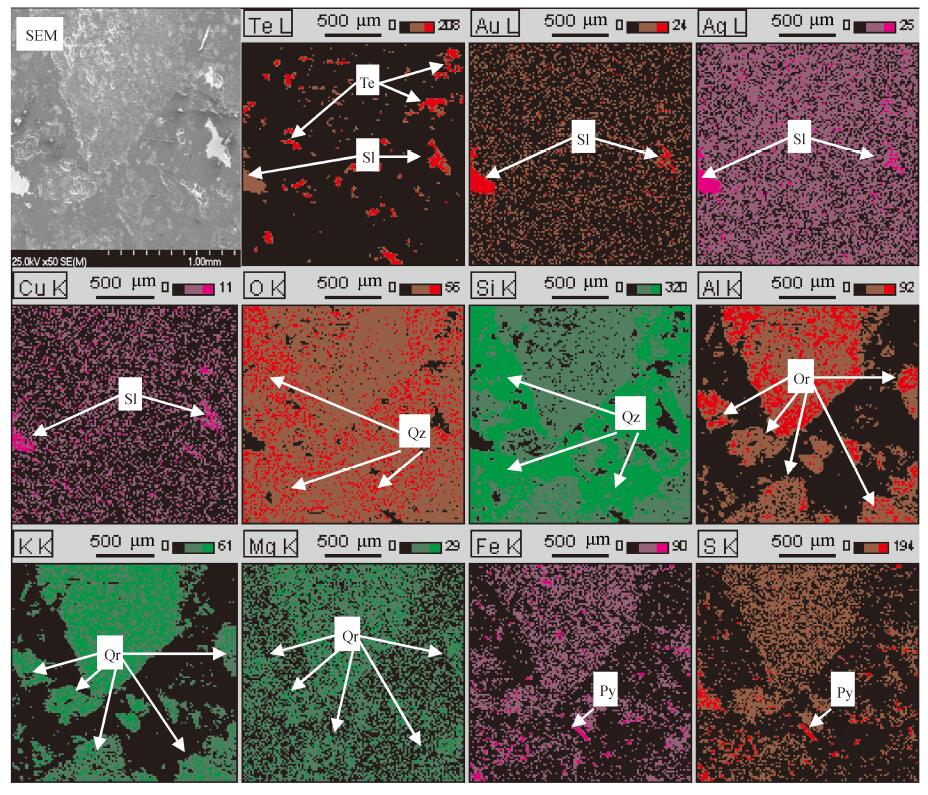

图 12卓家庄金矿床ZJ_3某区域形貌SEM及元素含量分布图
Te—碲; Sl—针碲金银矿; Qz—石英; Qr—正长石; Py—黄铁矿
Fig. 12SEM image and element distribution by EDS_mapping for sample ZJ _3 from the Zhuojiazhuang gold deposit
Te—Tellurium; Sl—Sylvanite; Qz—Quartz; Qr—Qrthoclase; Py—Pyrite
|

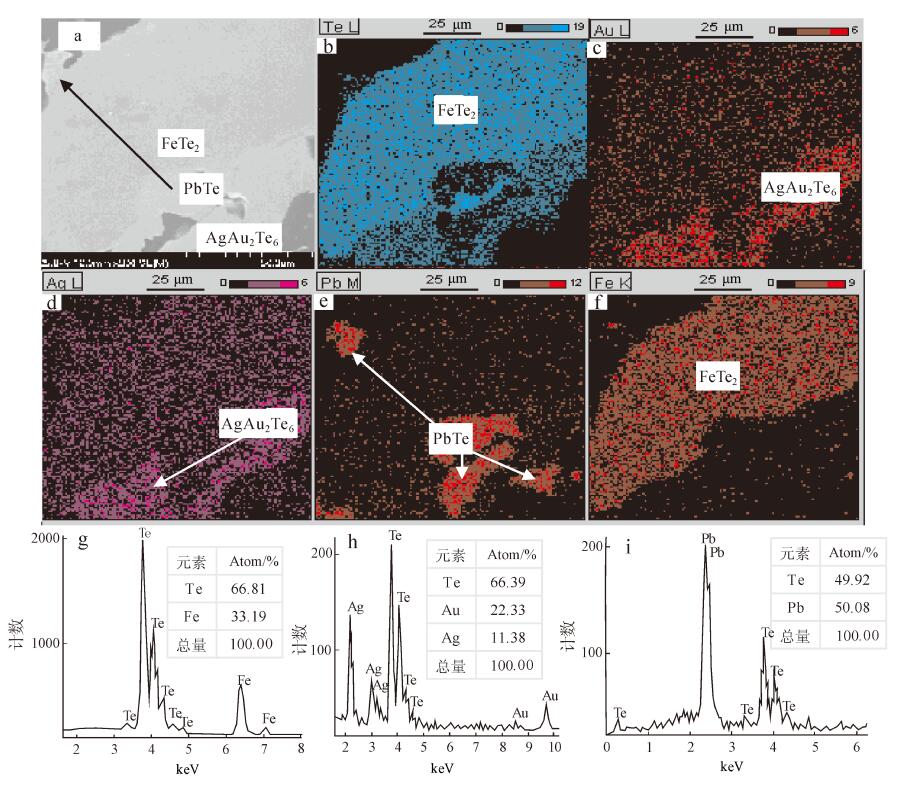

图 13卓家庄金矿床ZH_b1中含碲矿物形貌(a)、元素分布(b、c、d、e、f)及能谱分析图(g 、h、i)
FeTe2—碲铁矿; PbTe—碲铅矿; AgAu2Te6—针碲金银矿
Fig. 13SEM image (a), elements distribution (b, c, d, e, f) and content of EDS (g, h, i) of tellurium_bearing minerals
in ZH_b1 from the Zhuojiazhuang go ld deposit
FeTe2—Frohbergite; B—PbTe_Altaite; AgAu2Te6—Sylvanite
|

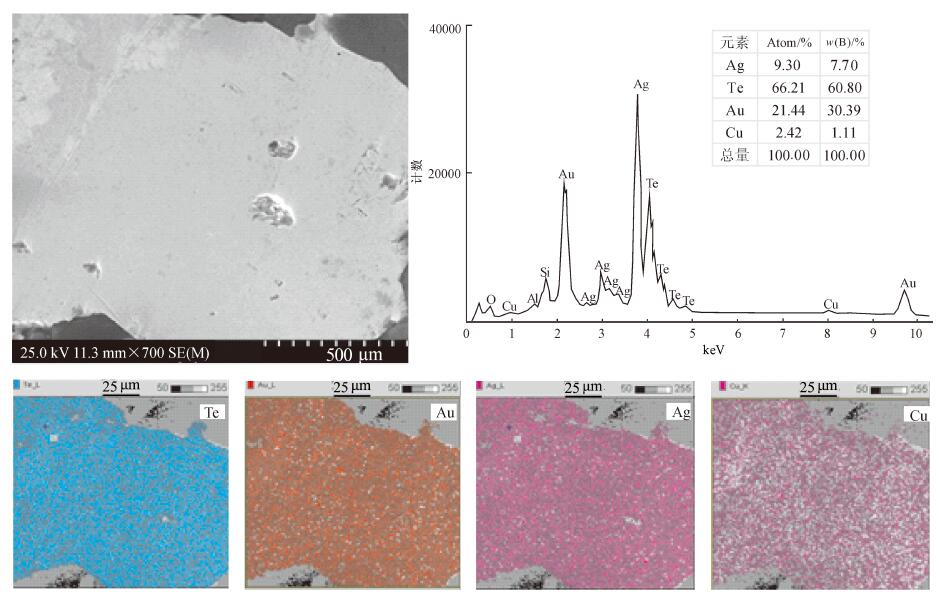

图 14卓家庄金矿床ZJ_3中含铜碲金银矿形貌(SEM)、元素分布及能谱分析图
Te—碲; Au—金; Ag—银; Cu—铜
Fig. 14SEM image, element distribution and content of EDS of copper_bearing pe tzite in sample ZJ_3
Te—Tellurium; Au—Gold; Ag—Silver; Cu—Copper
|
